Flip Open Magnetic Frame and GOB Protective IP65 Front Surface in 640x1920mm Large Display Area—Foldable
FEATURES:

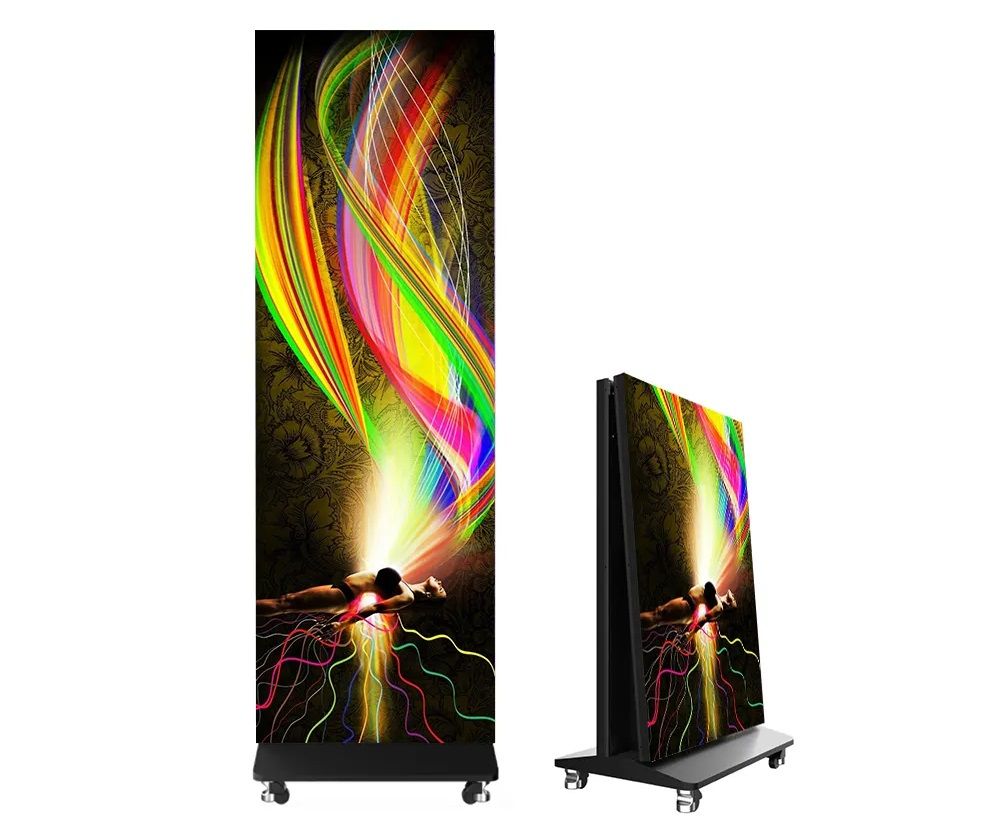

- 【Foldable】 ：Foldable Poster LED Display offers a more refined foldable and dual-sided design that occupies minimal space while delivering the widest visual impact.
- 【Large Display Area】 ：640mm Wide by 1920mm Height, made with 320×160 mm LED Display Modules
- 【Multiple Pixel Pitch Options】 ：Available for various pixel pitch options: P1.25, P1.53, P1.86, P2.5.

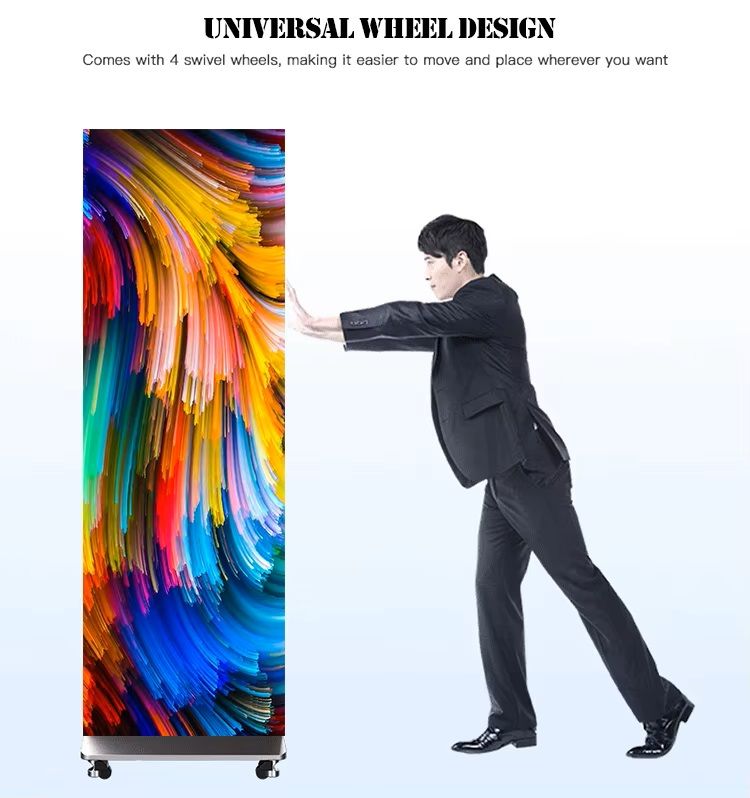

- 【Free Standing】 ：With universal direction wheel, the LED poser is free to move around.

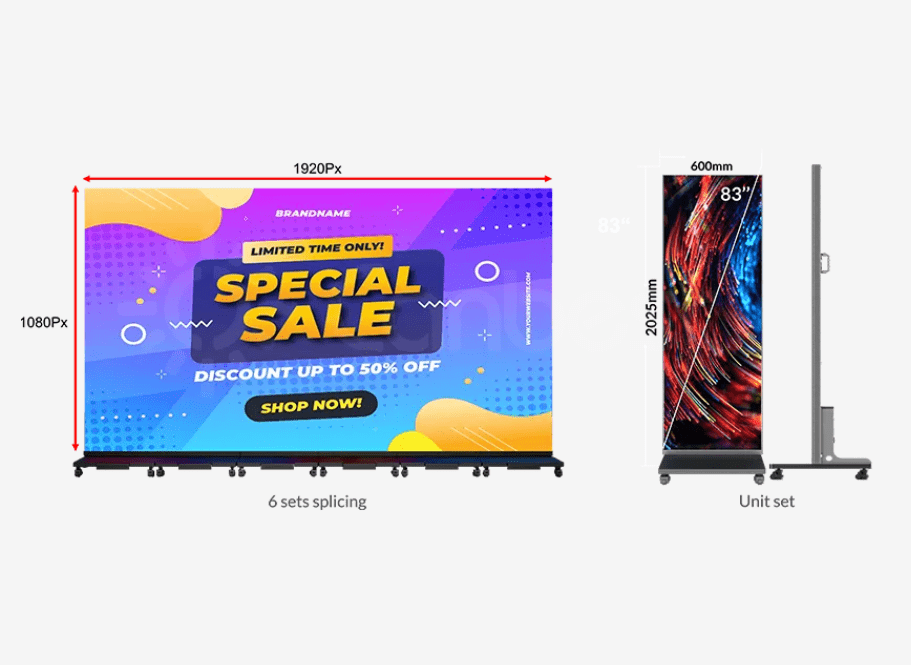

- 【Multiple Pieces Linkable】 ：LED poster video display allow for multi-pieces chain together and get big SEAMLESS display screen. P.S. With built-in Novastar TB40 box, the P1.25 supports 2pcs, P1.53 support 4pcs, P1.86 support 6pcs and P2.5 support 8pcs to chain together.
- 【Upgraded Frame】: Upgrade with flip open edge frame, making multi-screen combination process simpler. Just need to ope the edge frame and fasten the quick locks of the two adjacent LED digital posters.
- 【GOB Technology】 ：GOB (gel on board) Technology LED module protecting from water and bump. Modules are fixed with magnets, front access for maintenance.
spécification
|
Pas de pixel
|
P1.25
|
P1.538
|
P1.86
|
P2.5
|
|
Configuration des LED
|
CMS1010
|
SMD1212
|
CMS1515
|
CMS2121
|
|
Densité de pixels
|
640,000 points / ㎡
|
422,750 points / ㎡
|
284,444 points / ㎡
|
160,000 points / ㎡
|
|
Taille du module
|
320*160mm
|
320*160mm
|
320*160mm
|
320*160mm
|
|
Résolution du module
|
256*128dot
|
208*104dot
|
172*86dot
|
128*64dot
|
|
Taille de l'armoire
|
2050*648mm
|
2050*648mm
|
2050*648mm
|
2050*648mm
|
|
Résolution du Cabinet
|
512*1536dot
|
416*1248dot
|
344*1032dot
|
256*768dot
|
|
Poids de l'armoire
|
43kg
|
43kg
|
43kg
|
43kg
|
|
Niveau de luminosité
|
>600CD/㎡
|
>600CD/㎡
|
>600CD/㎡
|
>600CD/㎡
|
|
Angle de vue (NH)
|
160° / 160 °
|
160° / 160 °
|
160° / 160 °
|
160° / 160 °
|
|
La distance de vue
|
>1m
|
>2m
|
>3m
|
>5m
|
|
Échelle de gris
|
16bit
|
16bit
|
16bit
|
16bit
|
|
Color Variety
|
16.7 M
|
16.7 M
|
16.7 M
|
16.7 M
|
|
Réglage de la luminosité
|
0-100 les niveaux
|
0-100 les niveaux
|
0-100 les niveaux
|
0-100 les niveaux
|
|
Consommation maximale
|
360W / ㎡
|
360W / ㎡
|
360W / ㎡
|
360W / ㎡
|
|
Ave.Power Consumption
|
120W / ㎡
|
120W / ㎡
|
120W / ㎡
|
120W / ㎡
|
|
Scan by Drive Mode
|
1/32S
|
1/32S
|
1/32S
|
1/32S
|
|
Fréquence de rafraîchissement
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
|
Support signal input type
|
Network cable, USB, cell phonewifi Wireless 4G
|
Network cable, USB, cell phonewifi Wireless 4G
|
Network cable, USB, cell phonewifi Wireless 4G
|
Network cable, USB, cell phonewifi Wireless 4G
|
|
Enter Operation Power
|
AC100~240 50/60HZ
|
AC100~240 50/60HZ
|
AC100~240 50/60HZ
|
AC100~240 50/60HZ
|
|
Température de fonctionnement
|
– 20 ~ + 50 ℃
|
– 20 ~ + 50 ℃
|
– 20 ~ + 50 ℃
|
– 20 ~ + 50 ℃
|
|
Humidité d'exploitation
|
10~95% RH
|
10~95% RH
|
10~95% RH
|
10~95% RH
|
