Magic carpet LED screen can also be called rolling LED display is a new product，it is a flexible LED screen that can be hung, raised, lowered, rolled up or folded by mechanical devices for rental events, or laid flat on the ground for use as an dance LED video floor screen.pixel pitch: P0.78,P0.9,P1.25,P1.56,P1.95,P2.604,P3.91.
Feature Introduction:
- Ultra-light, ultra-thin(thickness: 17mm).
- DC24V-48V input, safety usage.
- High-end DOB solution, big viewing angle.
- Exquisite shape and foldable, small storage spaces.
- No need support bases, lay down the ground directly.
- Seamless splicing, no screw holes on the surface of module, and exquisite structure.
Roll up LED Screen For Dance LED Floor
- 1000kg/m2 load capacity
- Built-in interactive chip, sensing speed 0.016s
- High precision seamless splicing supports size customization
- Multiple pixel pitch（P0.78、0.9、1.2、1.5、1.95、2.6、3.91）
Easy Installation and Maintenance.
Creative Flexible series LED display installation and maintenance are simple and convenient from front or rear, no professinal skill is needed, save maintenance time and cost.
Multiple Installation Modes

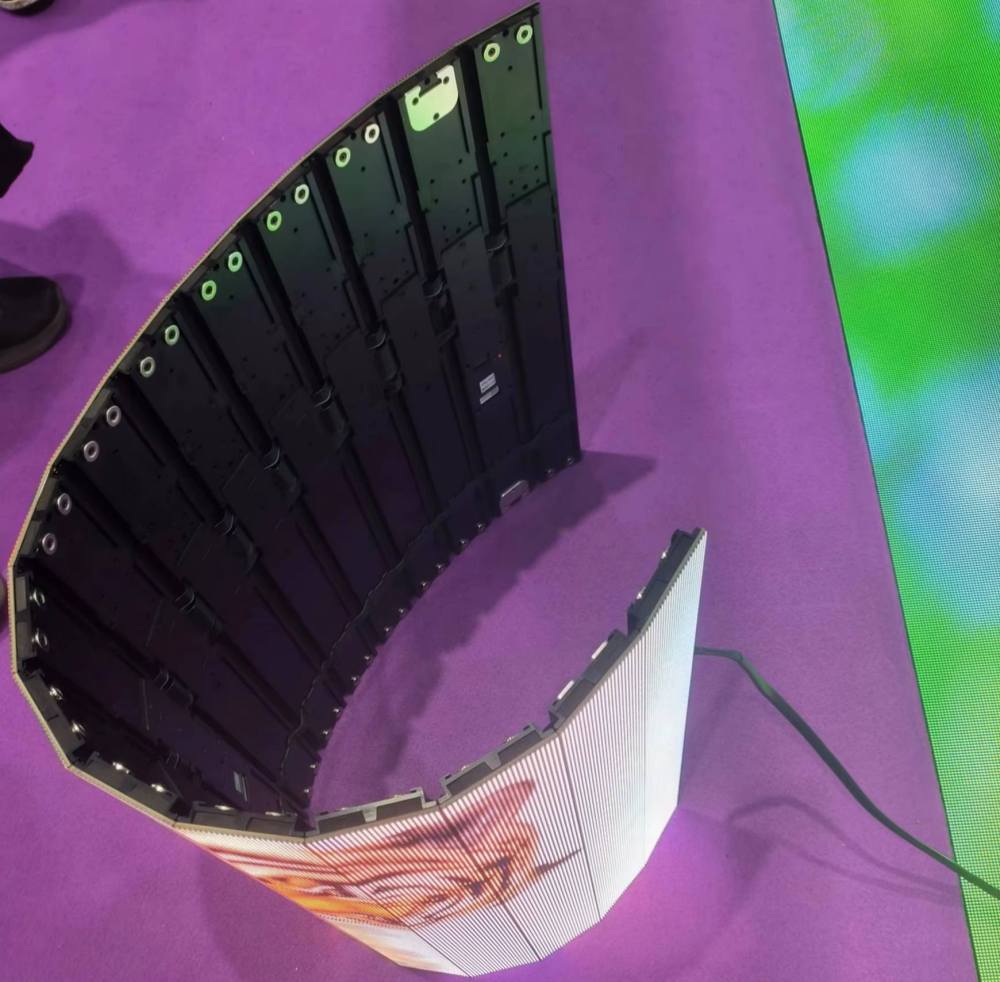

This rolling LED display has multiple installation modes, which can be installed in inner and outer arcs, flat, hanging, fixed, etc.
Main Application Areas of Roll-up LED Screen
Rolling LED screens, with their innovative design and advanced structural technology, are suitable for a wide range of applications and can perfectly replace many traditional LED screen products. Their lack of a cabinet or structure makes them lighter and thinner, offering advantages not found in most other LED screens. The following are the main applications for this multifunctional LED screen.
| Product Paramenters | |||||
| Pixel Pitch (mm) | 1.25 | 1.56 | 1.93 | 2.604 | 3.91 |
| LED Configuration | SMD1212 | SMD1212 | SMD1212 | SMD1515 | SMD1515 |
| Pixel Density (pixels/m²) | 640000 dot/m² | 409600 dot/m² | 262144 dot/m² | 147456 dot/m² | 65536 dot/m² |
| Module Size | 500 x 62.5 x 18 | 500 x 62 .5x 18 | 500 x 62.5 x 18 | 500 x 62 .5x 18 | 500 x 62.5 x 18 |
| (W x H x D)(mm) | |||||
| Cabinet Size | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 |
| (W x H x D)(mm) | |||||
| Scan | 50s | 40s | 32s | 16s | 16s |
| Brightness (cd/㎡) | 600 | 600 | 700 | 700-1000 | 700-1000 |
| Max./Avg. Power | 200 / 100 | ||||
| (W/Cabinet) | |||||
| Viewing Angle | 160°/160° | ||||
| Operating Voltage | 100-240V AC 50-60Hz | ||||
| Refresh Rate | 3840Hz | ||||
| IP Rating (Front/Rear) | IP54/IP45 | ||||
| Maintenance Mode | Front & Rear Maintenance | ||||
| Max Load-Bearing | 2000kg | ||||
