Rolling Floor Display is designed for replacing the conversional LED Floor Screen, which can be installed as simple as laying a carpet. Without PC mask, LED Rolling Floor Display can get the more excellent appearance and display effect in high contrast, and comparing with the conversional LED Floor screen, it is without the splicing gap problem, better flatness and integrity.
Features:
* Pixel Pitch: P1.2, P1.5, P1.9, P2.6, P3.9;

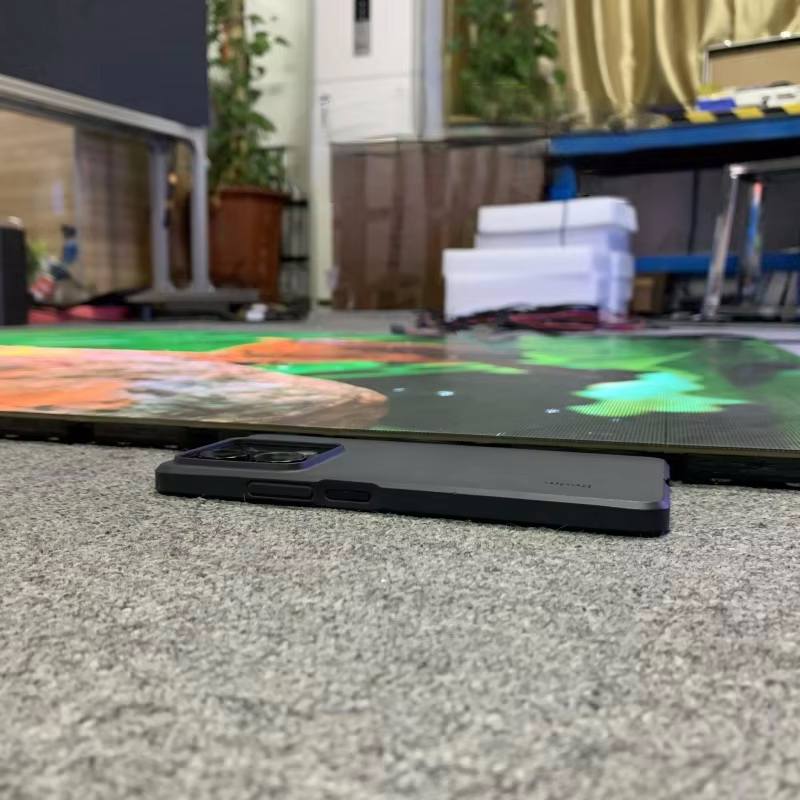

* Ultra-slim (thickness: 10mm) & ultra-light weight (13KGS/sqm) design;
* Front & Rear service;

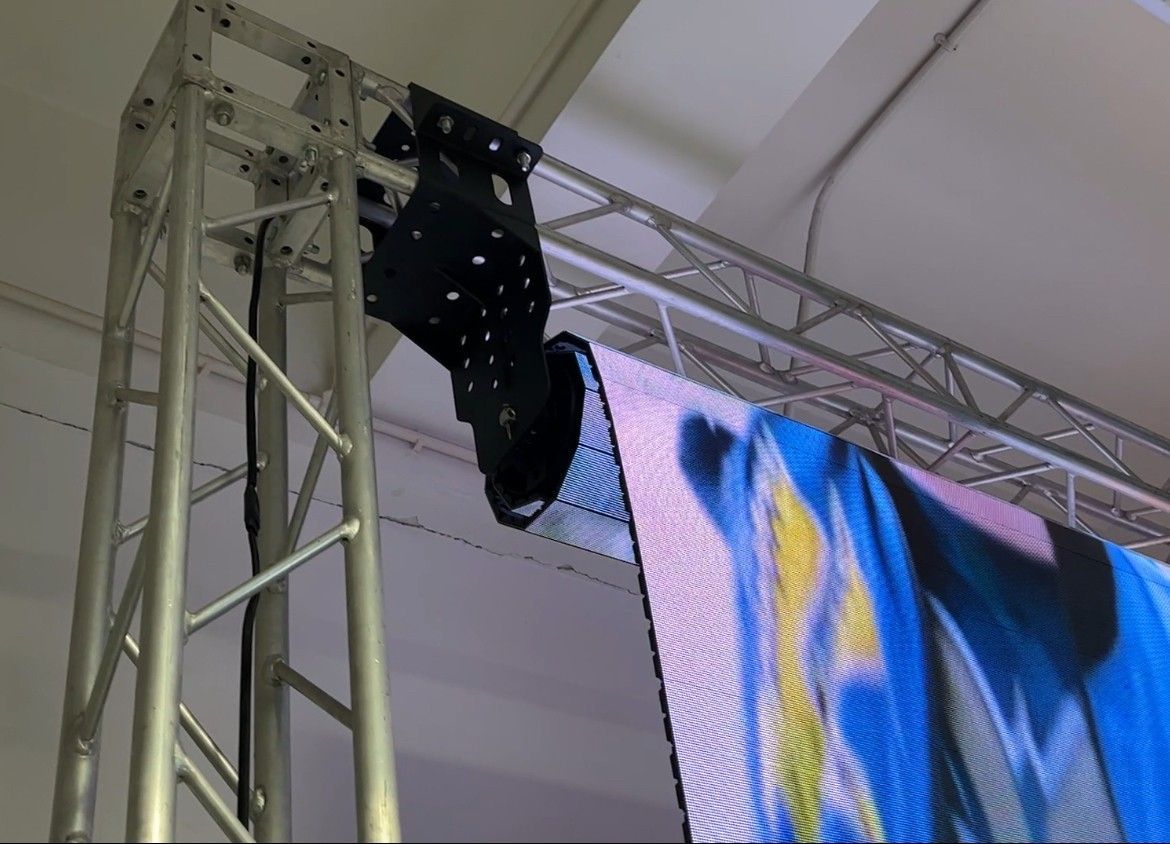

* Hanging/wall mounted optional;
* Small storage space, one flight case in 0.6CBM;
* Easy and rapid installation;
* Support Wi-Fi, HDMI & USB & Network control by PC, Android and ISO system;

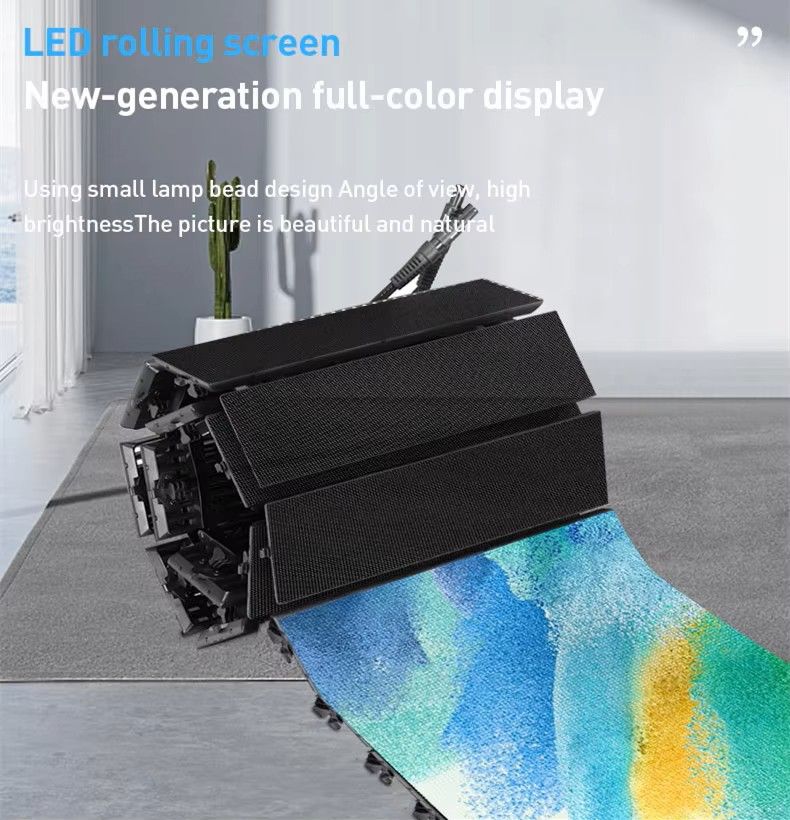

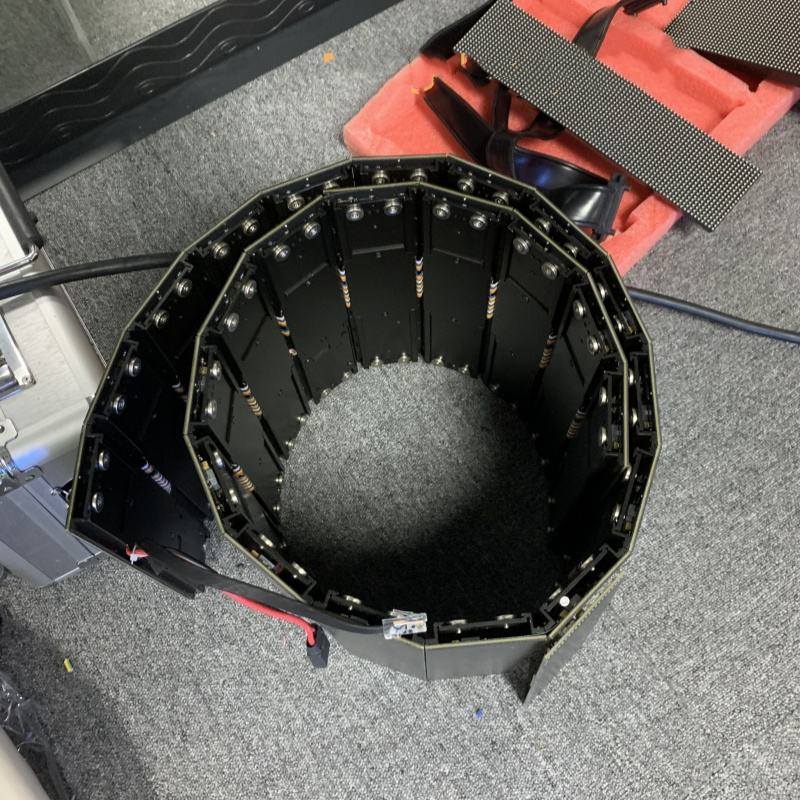

LED Rolling Floor
Thanks for the patented technology of LED Rolling Display, Rolling Floor Display is designed for replacing the conversional LED Floor Screen,
which can be installed as simple as laying a carpet, very low profile, save much space and easier to integrate into the original environment.
Without PC mask, LED Rolling Floor Display can get the more excellent appearance and display effect in high contrast, and comparing wiht the conversional LED floor screen,
it is without the splicing gap, better flatness and integrity.
Roling TV
Benifited from the small carry size and simple installation, you can get your private theater and stage,
only with two camera brackets.
Put a rolling TV with 2K screen in the trunk of the car and take it whereever you want to go, which will make your party or family camping more funny and colorful.

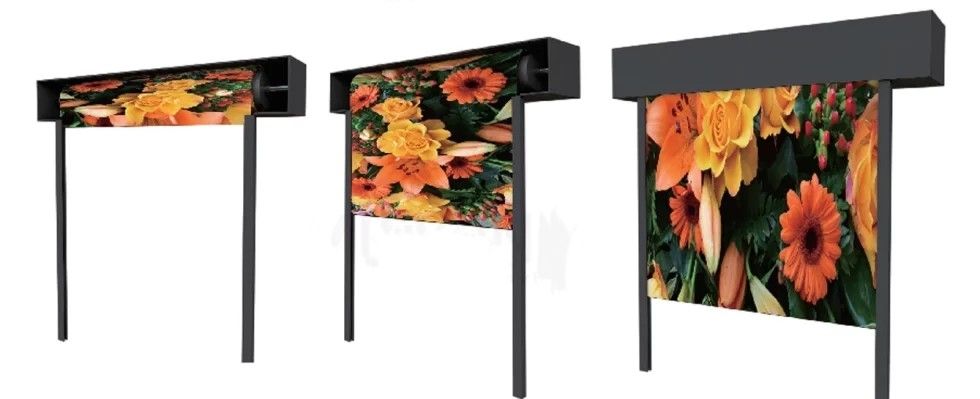

Roling LED Poster Display
Benifited from the small carry size and simple installation, this is ideal for small festival or advertising for stores or exibition.

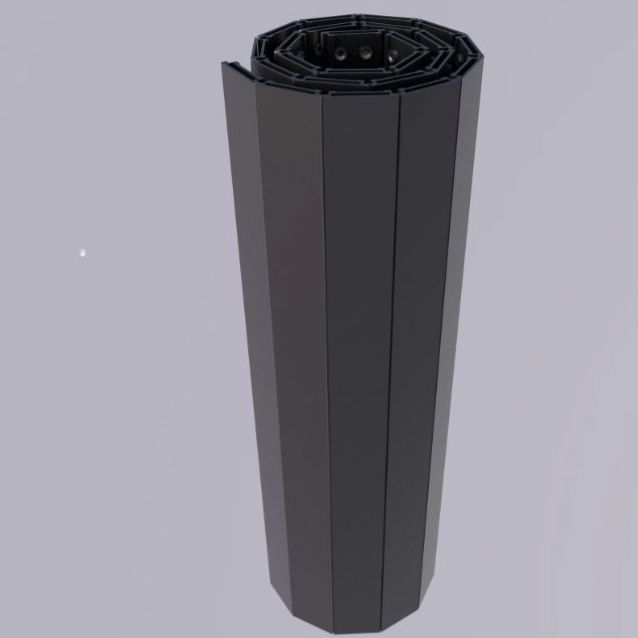

Rolling to reel into a road rolling case to move here and there.
Easy to assemble and removal.
| Product Paramenters | |||||
| Pixel Pitch (mm) | 1.25 | 1.56 | 1.93 | 2.604 | 3.91 |
| LED Configuration | SMD1212 | SMD1212 | SMD1212 | SMD1515 | SMD1515 |
| Pixel Density (pixels/m²) | 640000 dot/m² | 409600 dot/m² | 262144 dot/m² | 147456 dot/m² | 65536 dot/m² |
| Module Size | 500 x 62.5 x 18 | 500 x 62 .5x 18 | 500 x 62.5 x 18 | 500 x 62 .5x 18 | 500 x 62.5 x 18 |
| (W x H x D)(mm) | |||||
| Cabinet Size | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 |
| (W x H x D)(mm) | |||||
| Scan | 50s | 40s | 32s | 16s | 16s |
| Brightness (cd/㎡) | 600 | 600 | 700 | 700-1000 | 700-1000 |
| Max./Avg. Power | 200 / 100 | ||||
| (W/Cabinet) | |||||
| Viewing Angle | 160°/160° | ||||
| Operating Voltage | 100-240V AC 50-60Hz | ||||
| Refresh Rate | 3840Hz | ||||
| IP Rating (Front/Rear) | IP54/IP45 | ||||
| Maintenance Mode | Front & Rear Maintenance | ||||
| Max Load-Bearing | 2000kg | ||||
